>زاوية العدسة:170°;
>للماءIP Ratting:IP67;
>اللون: أسود;
>TV System:NTSC/PAL;
>إشارة: إشارة CVBC;
>Sony CCD or CMOS Lens;
>ليلة مصباح متاح;

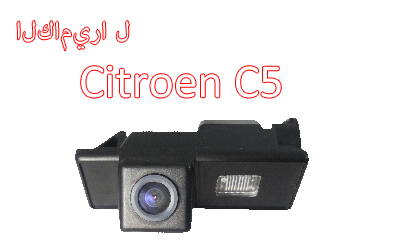

This waterproof car rear view backup camera is special for Citroen C5.This product is easy installation without drilling Hole. It is great that with the waterproof and night lamp function. product feature
|
Image Sensors |
CCD lens |
Color CMOS lens |
|
IP rating |
Ip68 |
Ip68 |
|
TV System |
PAL or NTSC |
NTSC or PAL |
|
Effective Pixels |
628×582/628×492 |
580×540/580×492 |
|
Sensing Area(mm) |
4.9×3.7 |
|
|
Resolution(TV Line) |
480 |
420 |
|
Horizontal Sync Frequency (KHZ) |
15.625/15.734 |
|
|
Vertical Sync Frequency (HZ) |
50/60 |
|
|
Video output |
1Vp-p,75Ohm,RCA male |
|
|
Gamma Consumption |
0.45 |
|
|
AGC |
Auto |
|
|
BLC |
Auto |
|
|
S/N Ratio |
Betterthan 48dB |
|
|
Lens Angle (Deg.) |
170°diagonal |
|
|
Current Consumption (mA) |
200 |
180 |
|
Power Supply (DCV) |
12V |
|
|
Operating Temperature (Deg.C) |
-20~+70(RH95%MAX.) |
|
|
Storage Temperature (Deg.C) |
-40~+80(RH95%MAX.) |
|
|
Size |
Same as the number plate reversing lamp of the original car |
|
|
LED lamp inside the camera (if camera has built-in LED light) |
||
|
Power Supply (DCV) |
12V |
|
|
Light color |
Thin yellow |
|
|
Current Consumption (mA) |
30~60mA |
|
|
Operating Temperature |
-20~+100 |
|
|
Storage Temperature |
-40~+120 |
|
