>Lens Angle:170°;
>Waterproof IP Ratting:IP67;
>Color:Black;
>TV System:NTSC/PAL;
>Signal:CVBC signal;
>Sony CCD or CMOS Lens;
>Night Lamp Available;

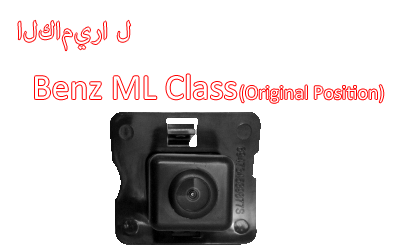

Special designed for Mercedes Benz ML350(ready hole)
Sony CCD lens or CMOS lens
Waterproof
Night lamp
Easy installation without drilling hole
|
Image Sensors |
CCD lens |
color CMOS lens |
|
IP rating |
Ip68 |
Ip68 |
|
TV System |
PAL or NTSC |
NTSC or PAL |
|
Effective Pixels |
628× 582/628× 492 |
580× 540/580× 492 |
|
Sensing Area(mm) |
4.9× 3.7 |
|
|
Resolution(TV Line) |
480 |
420 |
|
Horizontal Sync Frequency (KHZ) |
15.625/15.734 |
|
|
Vertical Sync Frequency (HZ) |
50/60 |
|
|
Video output |
1Vp-p, 75Ohm, RCA male |
|
|
Gamma Consumption |
0.45 |
|
|
AGC |
Auto |
|
|
BLC |
Auto |
|
|
S/N Ratio |
Betterthan 48dB |
|
|
Lens Angle (Deg. ) |
170° diagonal |
|
|
Current Consumption (mA) |
200 |
180 |
|
Power Supply (DCV) |
12V |
|
|
Operating Temperature (Deg. C) |
-20~+70(RH95%MAX. ) |
|
|
Storage Temperature (Deg. C) |
-40~+80(RH95%MAX. ) |
|
|
Size |
Same as the number plate reversing lamp of the original car |
|
|
LED lamp inside the camera (if camera has built-in LED light) |
||
|
Power Supply (DCV) |
12V |
|
|
Light color |
Thin yellow |
|
|
Current Consumption (mA) |
30~60mA |
|
|
Operating Temperature |
-20~+100 |
|
|
Storage Temperature |
-40~+120 |
|
