> زاوية عرض: 170°
> خطوط التلفزيون:：480
> واقية من الماء:：IP68
> الحد الأدنى من الإضاءة::0.1Lux
> امدادات التيار الكهربائي:: 12V ±4V
> درجة حرارة التشغيل: -20 درجة مئوية إلى +80 درجة مئوية
> درجة حرارة التخزين: -40 درجة مئوية إلى +100 ° C;C

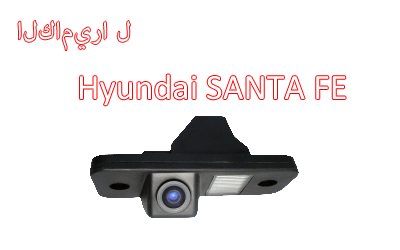

This waterproof car rear view backup camera is special for Hyundai SANTA FE.This product is easy installation without drilling Hole. It is great that with the waterproof and night lamp function.
Products Features:
| Image Sensors | SONY CCD lens | color CMOS lens |
| IP rating | Ip68 | Ip68 |
| TV System | PAL or NTSC | NTSC or PAL |
| Effective Pixels | 628×582/628×492 | 580×540/580×492 |
| Sensing Area(mm) | 4.9×3.7 | |
| Resolution(TV Line) | 480 | 420 |
| Horizontal Sync Frequency (KHZ) | 15.625/15.734 | |
| Vertical Sync Frequency (HZ) | 50/60 | |
| Video output | 1Vp-p,75Ohm,RCA male | |
| Gamma Consumption | 0.45 | |
| AGC | Auto | |
| BLC | Auto | |
| S/N Ratio | Betterthan 48dB | |
| Lens Angle (Deg.) | 170°diagonal | |
| Current Consumption (mA) | 200 | 180 |
| Power Supply (DCV) | 12V | |
| Operating Temperature (Deg.C) | -20~+70(RH95%MAX.) | |
| Storage Temperature (Deg.C) | -40~+80(RH95%MAX.) | |
| Size | Same as the number plate reversing lamp of the original car | |
| LED lamp inside the camera (if camera has built-in LED light) | ||
| Power Supply (DCV) | 12V | |
| Light color | Thin yellow | |
| Current Consumption (mA) | 30~60mA | |
| Operating Temperature | -20~+100 | |
| Storage Temperature | -40~+120 | |
