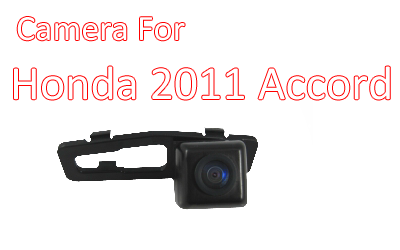

Waterproof Night Vision Car Rear View backup Camera Special for Honda Accord 2011,CA-864
  • Waterproof Night Vision Car Rear View backup Camera Special for Honda Accord 2011,CA-864

Waterproof Night Vision Car Rear View backup Camera Special for Honda Accord 2011,CA-864

Specifications
>Plastic material Back up Camera special design for Honda Accord 2011
>Designed according to the license light hole install, no drilling
>Waterproof/ Weatherproof function
>High view quality with night vision
>With reference Line
>Sensor:1/4"color CMOS (Sony CCD sensor is optional, please tick the checkbox if you want Sony CCD sensor
>  your car model.
>   View angle:170°
>  TV Lines:480
>  Water-proof:IP68
>  Minimum Illumination:0.1Lux
>  Supply voltage : 12V ±4V
>  Operating temperature :-20°C to+80°C
>  Storage temperature: –40°C to +100°C

Product Info



Product Description

Special designed for Honda Accord 2011
Sony CCD lens or COMS lens
Waterproof
Night lamp
Easy installation without drilling hole

Image Sensors

CCD lens

color CMOS lens

IP rating

Ip68

Ip68

TV System

PAL or NTSC

NTSC or PAL

Effective Pixels

628× 582/628× 492

580× 540/580× 492

Sensing Area(mm)

4.9× 3.7

Resolution(TV Line)

480

420

Horizontal Sync Frequency (KHZ)

15.625/15.734

Vertical Sync Frequency (HZ)

50/60

Video output

1Vp-p, 75Ohm, RCA male

Gamma Consumption

0.45

AGC

Auto

BLC

Auto

S/N Ratio

Betterthan 48dB

Lens Angle (Deg. )

170° diagonal

Current Consumption (mA)

200

180

Power Supply (DCV)

12V

Operating Temperature (Deg. C)

-20~+70(RH95%MAX. )

Storage Temperature (Deg. C)

-40~+80(RH95%MAX. )

Size

Same as the number plate reversing lamp of the original car

LED lamp inside the camera (if camera has built-in LED light)

Power Supply (DCV)

12V

Light color

Thin yellow

Current Consumption (mA)

30~60mA

Operating Temperature

-20~+100

Storage Temperature

-40~+120
