Key Specifications/Special Features:
-

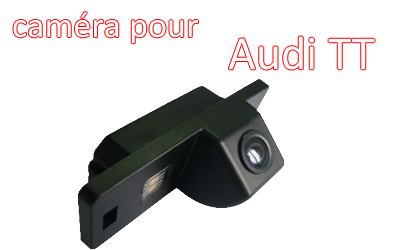

Rear-view camera for Audi TT
-
Waterproof: IP66
-
Images sensors: 1/3-inch Sony color CCD
-
Effective pixels: 628 x 582 and 625 x 512 pixels
-
Resolution: 480TVL
-
Minimum illumination (lux/f1.2): 0.2
-
Horizontal synchronization frequency: 15.625/15.734kHz
-
Vertical synchronization frequency: 50/60Hz
-
Video output: 75 ohms
-
Gamma consumption: 0.45
-
AGC: auto
-
BLC: auto
-
S/N ratio: better than 48dB
-
Lens: F = 1.9mm/F = 2.0mm
-
Lens angle: 170°
-
Power supply: 12V DC
-
Operating temperature: -20 to 75 degree Celsius, (95% RH maximum)
-
Storage temperature: -40 to 85 degree Celsius, (95% RH maximum)
