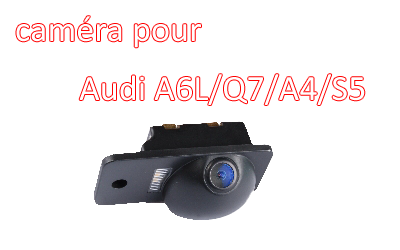

Waterproof Rear-view Camera with 300mAh Current Consumption, Suitable for Audi A6L/A4L CA-536
  • Waterproof Rear-view Camera with 300mAh Current Consumption, Suitable for Audi A6L/A4L CA-536

Waterproof Rear-view Camera with 300mAh Current Consumption, Suitable for Audi A6L/A4L CA-536

>  your car model.
>   View angle：170°
>  TV Lines：480
>  Water-proof：IP68
>  Minimum Illumination:0.1Lux
>  Supply voltage : 12V ±4V
>  Operating temperature :-20°C to+80°C
>  Storage temperature: –40°C to +100°C

Information sur le produit

Key Specifications/Special Features:

  • IP rating: IP66
  • Image sensor: 1/3-inch color CCD (1/3-inch color CMOS optional)
  • TV system: PAL/NTSC
  • Effective pixels: 628 x 582/628 x 512 pixels
  • Sensitive area: 55 x 47mm
  • Resolution: 420TVL
  • Minimum illumination (lux/F1.2): 0
  • Horizontal sync. frequency: 15.625/15.734kHz
  • Vertical sync. frequency: 50/60Hz
  • Video output: 75 ohms
  • Gamma consumption: 0.45
  • AGC: auto
  • BLC: auto
  • S/N ratio: better than 48dB
  • Lens: F = 1.9mm/F = 2.0
  • Lens angle: 120/95˚
  • Current consumption: 300mAh
  • Power supply: 12V DC
  • Working temperature: -20+75˚C (95% RH maximum)
  • Storage temperature: -40+85˚C (95% RH maximum)
