>Lens Angle:170°;
>Waterproof IP Ratting:IP67;
>Color:Black;
>TV System:NTSC/PAL;
>Signal:CVBC signal;
>Sony CCD or CMOS Lens;
>Night Lamp Available;

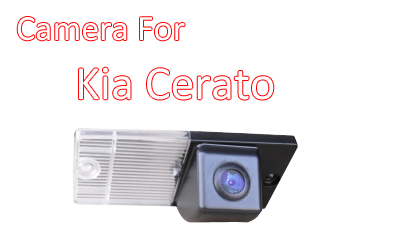

This Car reverse camera is special for KIA CERATO, and it is a waterproof and night lamp car camera.
| Image Sensors | SONY CCD lens | color CMOS lens |
| IP rating | Ip68 | Ip68 |
| TV System | PAL or NTSC | NTSC or PAL |
| Effective Pixels | 628× 582/628× 492 | 580× 540/580× 492 |
| Sensing Area(mm) | 4.9× 3.7 | |
| Resolution(TV Line) | 480 | 420 |
| Horizontal Sync Frequency (KHZ) | 15.625/15.734 | |
| Vertical Sync Frequency (HZ) | 50/60 | |
| Video output | 1Vp-p, 75Ohm, RCA male | |
| Gamma Consumption | 0.45 | |
| AGC | Auto | |
| BLC | Auto | |
| S/N Ratio | Betterthan 48dB | |
| Lens Angle (Deg. ) | 170° diagonal | |
| Current Consumption (mA) | 200 | 180 |
| Power Supply (DCV) | 12V | |
| Operating Temperature (Deg. C) | -20~+70(RH95%MAX. ) | |
| Storage Temperature (Deg. C) | -40~+80(RH95%MAX. ) | |
| Size | Same as the number plate reversing lamp of the original car | |
| LED lamp inside the camera (if camera has built-in LED light) | ||
| Power Supply (DCV) | 12V | |
| Light color | Thin yellow | |
| Current Consumption (mA) | 30~60mA | |
| Operating Temperature | -20~+100 | |
| Storage Temperature | -40~+120 | |
